Product Description:

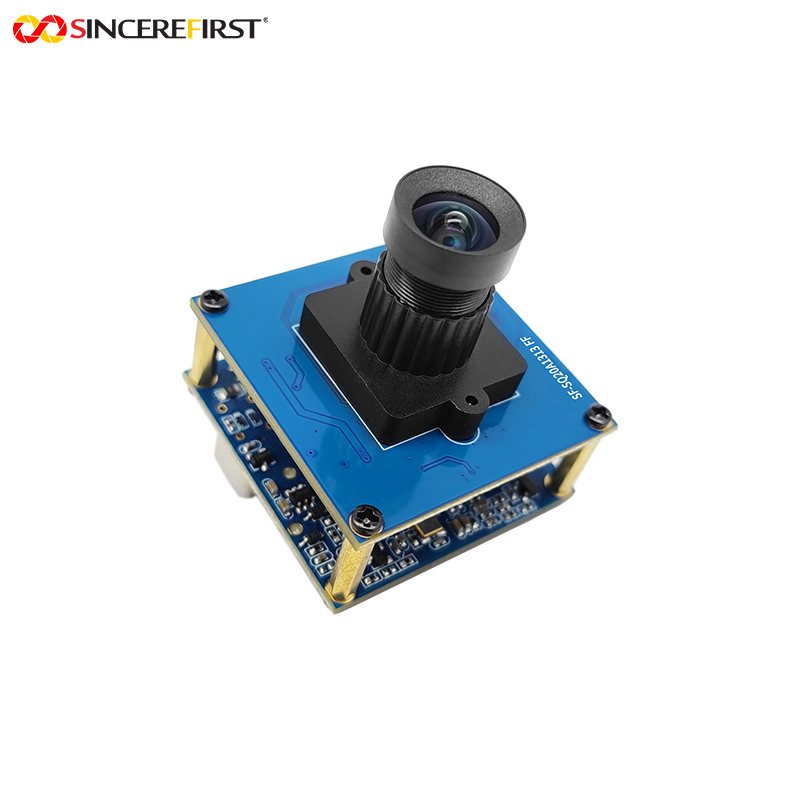

This 20MP image recognition AR2020 sensor HDMI USB3.0 interface camera module is a high-performance vision solution that integrates advanced imaging technology with convenient connectivity. At its core lies the onsemi AR2020 CMOS color image sensor, delivering exceptional 20-megapixel resolution and supporting true 3840x2160 4K video output at up to 30 FPS, ensuring exquisite and smooth imagery. The 1/1.8-inch sensor size coupled with 1.4μm×1.4μm large pixels significantly enhances light capture capability. The module supports HDR high dynamic range technology, maintaining outstanding performance even in complex lighting conditions. Its NIR performance excels at both 850nm and 940nm wavelengths, working in concert with the integrated 650nm IR filter to enable seamless day-night mode switching. Video output supports multiple formats including MJPG/YUY2/H.264, with focusing range from 1cm macro to infinity through manual focus. The compact module measures just 38mm×38mm and features dual Type-C and HDMI interfaces, supporting USB3.0 high-speed data transfer while complying with UVC protocol. It maintains compatibility with mainstream operating systems including Raspberry Pi, Windows, Linux, and MacOS, comes with SDK development toolkit, and is manufactured using SMT(ROHS) process and AA process production, ensuring product consistency and reliability.

Features:

1. Exceptional Low-light Performance: Equipped with the high-performance AR2020 sensor, it delivers true 4K ultra-high definition image quality. Combined with 1.4μm large pixels and advanced image processing algorithms, it captures clear, low-noise images even in low-light conditions. HDR technology preserves more details in backlit or high-contrast scenarios, presenting natural and realistic visual effects.

2. Powerful Infrared Imaging: Excellent 850nm/940nm NIR sensitivity enables clear image acquisition with infrared illumination in complete darkness. The integrated 650nm IR filter allows automatic or manual switching, providing accurate color reproduction during daytime and high-quality infrared surveillance at night, enabling 24/7 continuous operation.
3. Broad Compatibility: Dual interface design meets various connection needs, with USB3.0 ensuring high-speed data transmission and UVC protocol supporting plug-and-play functionality. Comprehensive compatibility with multiple operating systems and development platforms ensures seamless integration from Raspberry Pi to professional industrial computers. The provided SDK supports deep customization, significantly reducing time-to-market.

Technical Parameters:

Applications:

Vehicle Recognition Systems: 4K resolution clearly captures license plate details, while HDR functionality effectively counteracts strong light interference such as direct headlights. Excellent NIR performance ensures nighttime recognition rates, making it suitable for expressway toll collection, parking lot management, traffic violation monitoring, and other systems.
Precision Measurement: High resolution and 1cm macro capability make it ideal for precision component inspection, surface defect identification, and dimensional measurement applications. Stable manual focus functionality locks focus points, ensuring measurement consistency during prolonged continuous operation.
Medical Imaging: Outstanding NIR performance makes it excel in medical endoscopy, vascular imaging, and multispectral analysis applications. High resolution supports digital pathology slide scanning and remote diagnosis, providing reliable image acquisition solutions for medical and scientific research.

Professional Live Streaming: 4K 30FPS high-spec output meets demanding quality requirements for professional live broadcasting, product demonstration, and online education scenarios. Wide platform compatibility enables easy integration into various production environments, with Type-C and HDMI dual interfaces providing flexible connection solutions.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About US:

Cooperative Brands & Customers:

Why Chooes US:

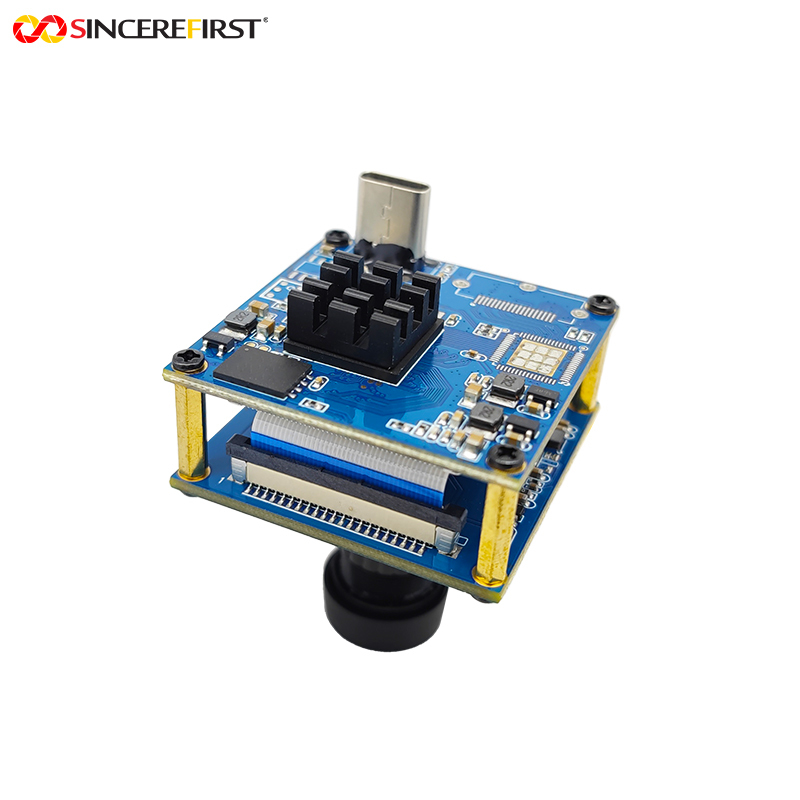

Detail Pictures:
