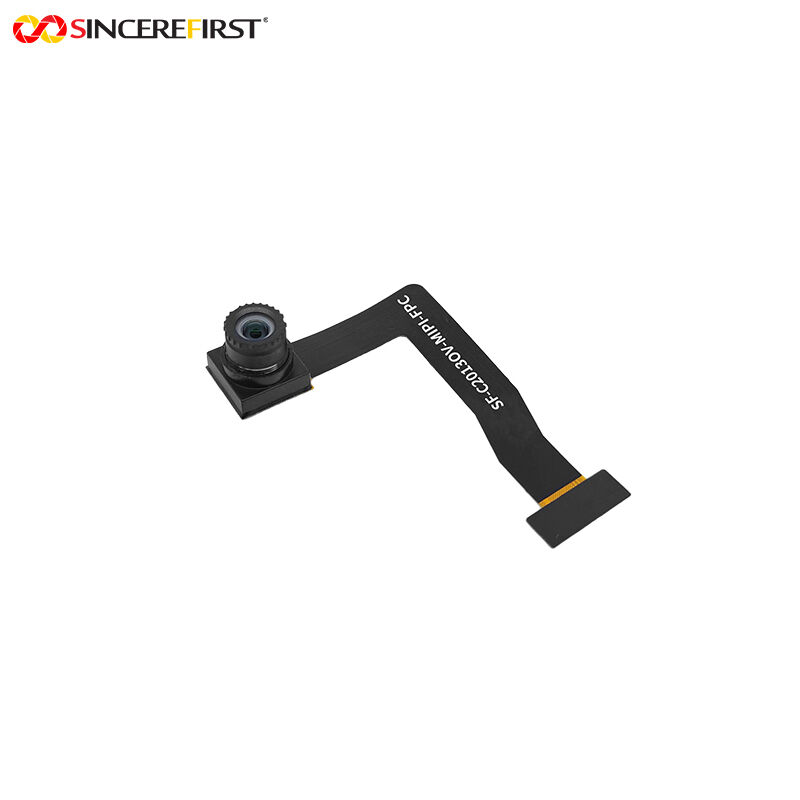

High-Definition PTZ 2MP Image Sensor OV2718 FPC Camera Module

High-Definition PTZ 2MP Image Sensor OV2718 FPC Camera Module

Product Description:

This high-definition PTZ 2MP image sensor OV2718 FPC camera module is a professional imaging solution integrating high performance, reliability, and high integration. At its core lies the OmniVision OV2718 CMOS color image sensor. With its mature hardware configuration and precise optical design, it adapts to diverse usage needs. It boasts 2MP effective pixels and a resolution of 1920x1080, capable of stably outputting smooth 1920x1080@30FPS video without smearing or lag. The sensor size is 1/2.9 inches, paired with a large pixel specification of 2.8μm x 2.8μm. It integrates HDR functionality and OmniBSI™-2 backside illumination technology, significantly improving light utilization and dynamic range, allowing for the restoration of true colors and rich details even under complex lighting. In terms of optical configuration, the module employs manual focus, equipped with an F2.2 large aperture and a 3.14mm focal length, achieving ultra-wide depth of field coverage from 1cm to Infinity. The diagonal field of view reaches D90°, with TV distortion controlled within -5%, effectively preventing image warping. For data transmission, it outputs 12-bit RAW format data in linear mode via the MIPI CSI-2 serial interface, reserving ample space for backend image processing. Production utilizes advanced COB packaging and AA (Active Alignment) processes, ensuring product stability and structural compactness. It has also passed multiple international tests and certifications including CE, FCC, RoHS, and Reach, meeting market access standards for various global regions.

Features:

1. Wide Adaptability to Light Environments: The synergy of 2.8μm large pixels and OmniBSI™‑2 technology enhances the signal-to-noise ratio (SNR) in low-light environments and reduces noise. The HDR function can quickly balance the contrast between strong light and dark areas, outputting clear and transparent images whether in direct strong light, backlight, or dim scenes.
2. Precise and Flexible Optical Performance: The 90° wide-angle design covers a larger field of view, and combined with low distortion control of < -5%, it delivers high image fidelity, suitable for complete scene recording. Manual focus paired with a depth of field from 1cm macro to infinity can not only accurately capture close-range tiny details but also clearly present long-distance scenes, adapting to multi-focal-length needs.

3. Data and Development-Friendly: The 12-bit RAW format output retains 4096 levels of grayscale information, providing abundant original data for backend processing such as color calibration and detail enhancement. The MIPI CSI-2 serial interface offers strong compatibility, enabling easy connection to various embedded devices and development platforms, thus lowering the threshold for secondary development.

4. Dual Guarantees of Quality and Compliance: The COB technology and AA process improve the module's structural stability and anti-interference capability, extending its service life. Fully certified by international authorities, it meets the compliance requirements of different countries and regions without additional adaptation, reducing market access costs.

Technical Parameters:

Applications:

• Smart Retail: Adapts to product recognition at convenience store checkout counters and shelf display monitoring. The wide-angle lens covers complete cashier areas and full shelf views. Low distortion and HD imaging ensure barcodes and price tags remain clearly legible, while HDR handles complex lighting mixing store lights with natural window light.
• Smart Campus Interactive Devices: Used with classroom smart blackboards and external cameras for student tablets. Manual focus flexibly switches between close-ups of blackboard writing and whole-class scene capture. The 90° wide-angle accommodates large classroom spaces, while 12-bit RAW output guarantees true-to-life colors for educational content, facilitating remote teaching and classroom recording.
• Pet Smart Companion Devices: Integrated into pet feeders and interactive cameras. The 1cm macro captures clear details of pets eating and playing, while ultra-wide depth of field covers the full-room range of pet activities. Low-light imaging capability enables nighttime pet status monitoring, allowing owners to remotely monitor pets in real time.
• Outdoor Portable Imaging Devices: Mounted on handheld gimbals and outdoor adventure recorders. The vibration resistance of COB+AA manufacturing withstands outdoor movement bumps. HDR adapts to dramatic light changes like sunrise and sunset, while the wide-angle lens captures expansive outdoor scenery, meeting HD shooting needs for travel and exploration.
• Small Industrial Quality Inspection Equipment: Used for appearance inspection of electronic components and precision parts. Manual focus accurately targets tiny defects, while low distortion and HD imaging ensure inspection result accuracy. The 12-bit RAW format provides precise data support for inspection algorithms, adapting to integration requirements in miniaturized inspection equipment.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
